Daikin
Daikin 5kW Inverter Ducted Air Conditioner FDYAN50AV1 / RZA50CV1
Quantity:
Overview
DAIKIN FDYAN50A-CV 5 kW Inverter Ducted System | Single Phase
Best For:
Heating or cooling your entire home
Small to large houses
Houses with limited roof space and outdoor space All Daikin air conditioners exceed MEPS requirements, in line with Daikin’s commitment to providing energy efficient, quiet, simple to use and reliable air conditioning solutions.
5 kW Cooling – 6 kW Heating Capacity
Indoor : FDYAN50AV1
Outdoor: RZA50CV1
Back lit Wall Controller: BRC1E63
Perfect for 2-3 bedrooms

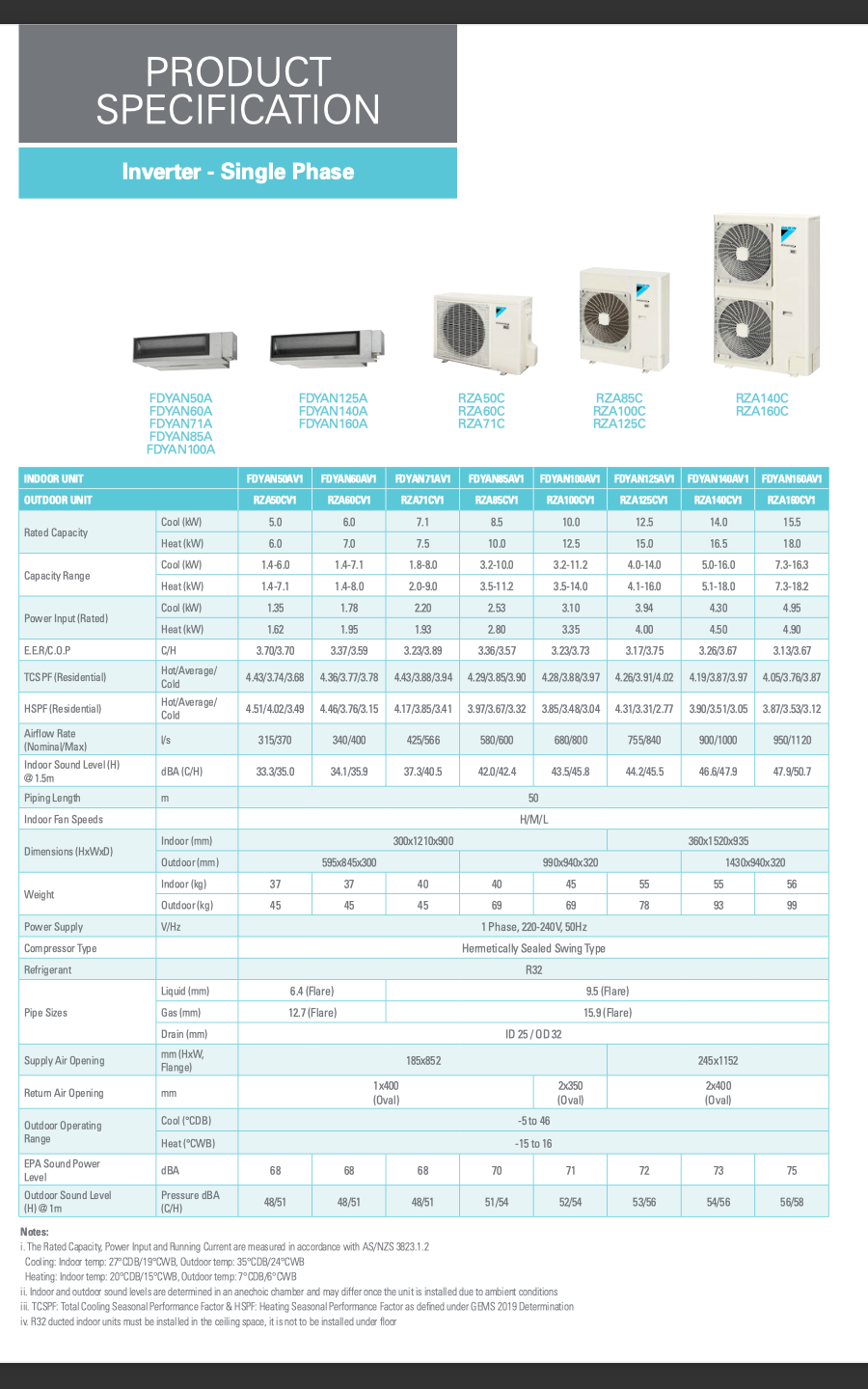

Specifications
| INDOOR UNIT | FDYAN50AV1 | |
| OUTDOOR UNIT | RZA50CV1 | |
| Rated Capacity | Cool (kW) | 5.0 |
| Heat (kW) | 6.0 | |
| Capacity Range | Cool (kW) | 1.4-6.0 |
| Heat (kW) | 1.4-7.1 | |
| Power Input (Rated) | Cool (kW) | 1.35 |
| Heat (kW) | 1.62 | |
| E.E.R./C.O.P. | Cool/Heat | 3.70/3.70 |
| Air Flow Rate (Rated) | I/S | 315 |
| Indoor Sound Level (@1.5m) | dBA | 33.3/35.0 |
| Piping Length | (m) | 50 |
| Indoor Fan Speeds | H/M/L | |
| Dimensions (HxWxD) | Indoor (mm) | 300x1210x900 |
| Outdoor (mm) | 595x845x300 | |
| Weight | Indoor(kg) | 37 |
| Outdoor(kg) | 45 | |
| Power Supply | V/Hz | 1 Phase, 220-240V, 50Hz |
| Compressor Type | Hermetically Sealed Swing Type | |
| Refrigerant | R32 | |
| Pipe Sizes | Liquid (mm) | 6.4 (Flared) |
| Gas (mm) | 12.7 (Flared) | |
| Drain (mm) | ID 25 / OD 32 | |
| Supply Air Opening | mm (HxW, Flange) | 185x852 |
| Return Air Opening | mm (Oval) | 1x400 (Oval) |
| Outdoor Operating Range | Cool (°CDB) | - 5 to 46 |
| Heat (°CWB) | - 15 to 16 | |
| EPA Sound Power Level | dBA | 68 |
| Outdoor Sound Level (H) @1m | Pressure dBA (C/H) | 48/51 |
