Fujitsu

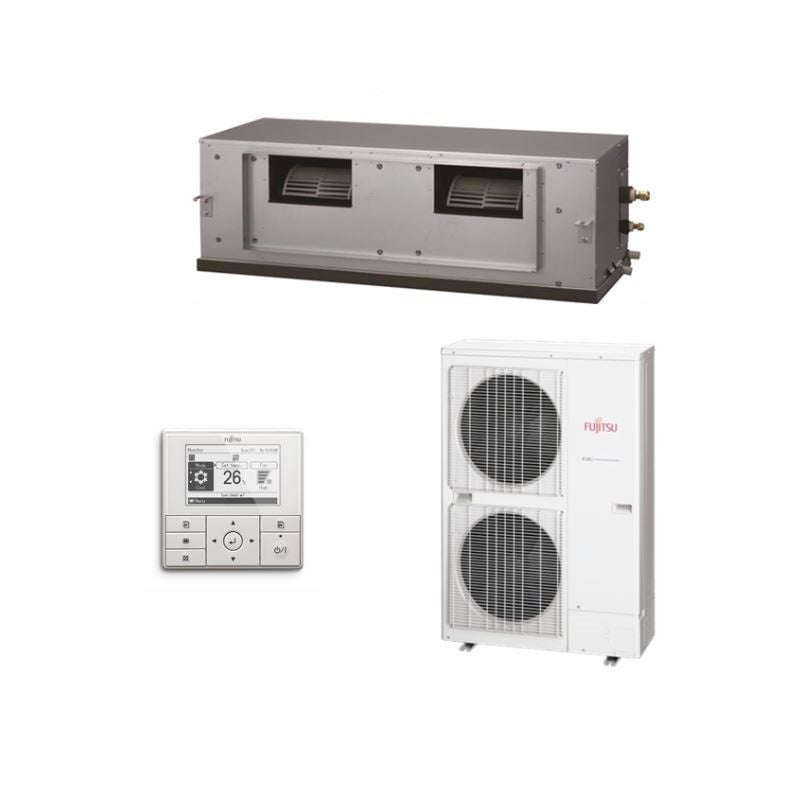

Fujitsu 14kW Inverter Ducted Air Conditioner System High Static SET-ARTG54LHTC
Quantity:
Overview
FUJITSU SET-ARTG54LHTC 14.0kW Inverter Ducted Air Conditioner System High Static 1 Phase
Fujitsu Inverter Ducted System
Indoor model ARTG54LHTC | Outdoor model AOTG54LCTL
14.0kW Cool – 16.0kW Heat
Single Phase.
Backlit Controller – UTY-RVNYN
14.0 kW Cooling
16.0 kW Heating
Super Deal
Specifications
| Model No. – Indoor | ARTG54LHTC |
| Model No. – Outdoor | AOTG54LCTL |
| Reverse Cycle System | Yes |
| Capacity Class | |
| Cooling Capacity (Watts) | 14,000 |
| Cooling Capacity (BTU/h) | 47,800 |
| Range (Watts) | 6,200 – 15,200 |
| Range (BTU/h) | 21,200 – 51,900 |
| Heating Capacity (Watts) | 16,000 |
| Heating Capacity (BTU/h) | 54,600 |
| Range (Watts) | 6,200 – 18,000 |
| Range (BTU/h) | 21,200 – 61,500 |
| Power Supply (Volts) | 240 |
| Phase-Frequency (Ph – Hz) | 1 – 50 |
| Power Supply Attachment | Outdoor |
| Plug Size (If Applicable) | N/A |
| Running Current, Cooling (Amps) | 18.4 |
| Running Current, Range (Amps) | Max: 23.5 |
| Input, Cooling (Watts) | 4,400 |
| Input, Range (Watts) | Max: 5,630 |
| Running Current, Heating (Amps) | 18.3 |
| Running Current, Range (Amps) | Max: 23.5 |
| Input, Heating (Watts) | 4,370 |
| Input, Range (Watts) | Max 5,630 |
| Input (Watts) | |
| Moisture Removal (l/hr) | 1.5 |
| E.E.R. – Cooling | 3.18 |
| C.O.P. – Heating | 3.66 |
| Star Rating – Cooling | – |
| Star Rating – Heating | – |
| Fan Speed | 4 |
| Air Circulation, High (l/s) | 986 |
| Compressor Type | DC Rotary |
| Dimensions – Inside Unit (HxWxD mm) | 425 x 1,250 x 490 |
| Weight – Inside Unit (kg) | 54 |
| Dimensions – Outside Unit (HxWxD mm) | 1,290 x 900 x 330 |
| Weight – Outside Unit (kg) | 93 |
| I.U. Sound Pressure Level (dBA@1mtr) | 45 |
| O.U. Sound Pressure Level (dBA@1mtr) | 55 |
| O.U. Sound Power Level (dBA) | 70 |
| Refrigerant Type | R410A |
| Connection Pipe Sizes, Gas (mm) | 15.88 |
| Connection Pipe Sizes, Liquid (mm) | 9.52 |
| Pre Charged Length (Metre) | 30 |
| Minimum Pipe Length (Metre) | 5 |
| Maximum Pipe Length (Metre) | 75 |
| Maximum Pipe Height (Metre) | 30 |
| Pipe Connection Methods | Flare |
| Outdoor operating Temp, Cooling ℃ | -15 to 46 |
| Outdoor operating Temp, Heating ℃ | -15 to 24 |
