Mitsubishi Electric 6kW Inverter Ducted Air Conditioner PEAD-M60JAA

Mitsubishi Electric

Mitsubishi Electric 6kW Inverter Ducted Air Conditioner PEAD-M60JAA

$2,399.00
No reviews
No reviews
MODEL: PEAD-M60JAA / SUZ-M60VAD
Quantity:
Found a better price?

Ducted & Split Systems Sizing Calculator

Use our split system or ducted sizing calculator below to determine the minimum size required for your room or house.

Note: For ducted systems only include the air conditioned spaces, exclude areas like garages, bathrooms or laundries.



Overview

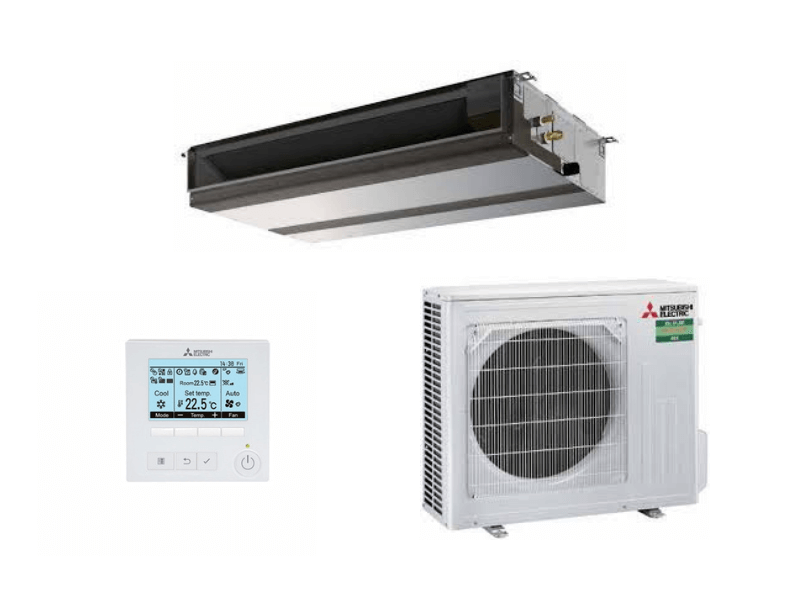

Mitsubishi Electric PEAD-M60JAADR1.TH / SUZ-M60VAD-A.TH 6kW Low Profile Ducted Air Conditioner System | 1 Phase

Mitsubishi Electric's PEAD-M60JAA ducted air conditioner has a low profile construction. This allows for installation in tight ceiling spaces.


    6kW Cooling – 7kW Heating Capacity


    PEAD-M60JAADR1.TH : Low Profile Indoor – Ducted with Drain Pump

    SUZ-M60VAD-A.TH: R32 Outdoor – DRED Capable

    PAR-40MAA: Backlit Wired Control

    Specifications

    PEAD-M Series (Ceiling Concealed)
    Indoor Unit PEAD-M60JAAD
    Outdoor Unit SUZ-M60VAD-A
    Refrigerant



    Power Supply (V, Phase, Hz)

    		 R32
    V:230V, Single-phase, 50/60Hz












    Cooling

    		 Capacity



    [Min-Rated*4-Max]               kW

    Total Input [Rated]*4            kW AEER/EER

    		 2.30 – 6.00 – 6.50
    1.72
    3.43/3.48
    AEER [Part-Load %]*1 Running Current [Rated]*4



    Sound         In (Lo-Mid-Hi) Pressure

    Level*2                 Out (PWL)

    Air Volume (In) Lo-Mid-Hi





    A

    		 –
    7.50




    dB(A)

    		 30 – 32 – 36
    49 (65)
    L/S 242 – 300 – 350












    Heating

    		 Capacity



    [Min-Rated*5-Max] Total Input [Rated]*5 COP/ACOP

    Running Current [Rated]*5

    Sound         In (Lo-Mid-Hi) Pressure

    Level*2                 Out (PWL)

    Air Volume (In) Lo-Mid-Hi

    		 kW kW





    A

    		 2.80 – 7.00 – 8.00
    1.85
    3.78/3.72
    8.10




    dB(A)



    L/S

    		 30 – 32 – 36
    51 (68)
    242 – 300 – 350
    Max. Running Current



    Input [Rated] (Cooling/Heating)

    		 A



    kW

    		 14.80
    0.12/0.10
    Indoor Unit Dimensions [HxWxD]          mm 250 x 1100 x 732
    Weight                              kg –
    Static Pressure                  Pa 35/50/70/100/125




    Outdoor Unit

    		 Dimensions [HxWxD]          mm 880 x 840 x 330
    Weight                              kg 54.0
    Breaker Size                      A 20
    Ext.         Diameter [Liquid/Gas]         mm ø6.35/ø15.88
    Piping     Max. Length/Height



    Guaranteed                Cooling Operating Range

    [Outdoor]                   Heating

    Pre-Charge Refrigerant

    		 m



    °C

    °C

    		 30/30
    -15 ~ 52*2



    -15 ~ 24
    kg 1.60 (7m)
    Additional Refrigerant                       g/m 20
