Mitsubishi Electric 7kW Low Profile Power Inverter Ducted System PEAD-M71JAA / PUZ-ZM71VHA-AR1
Quantity:
Overview

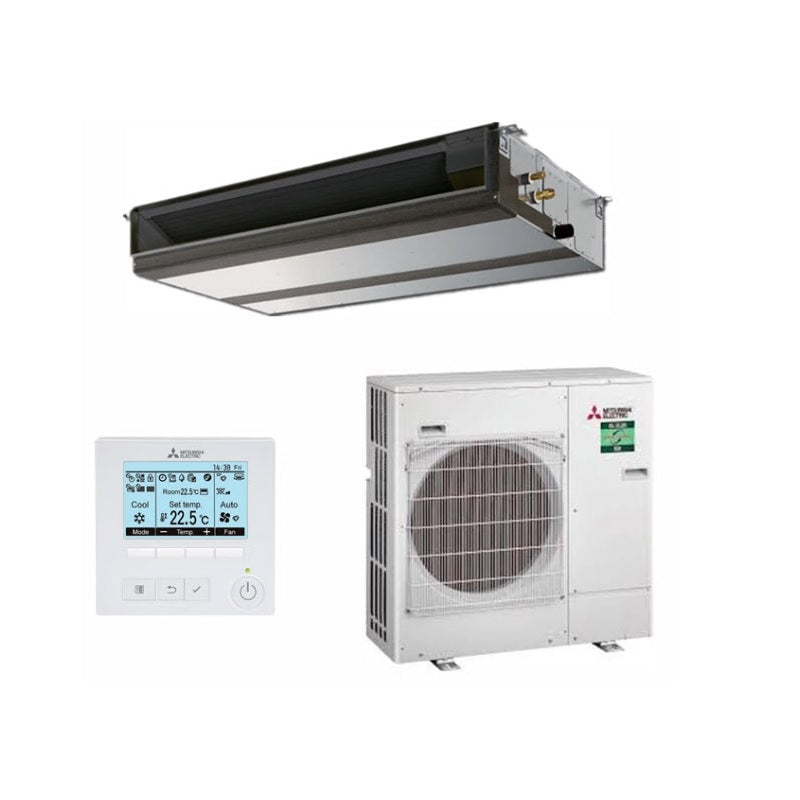

MITSUBISHI ELECTRIC PEAD-M71JAADR1.TH / PUZ-ZM71VHA-AR1 7kW Ducted Air Conditioner System 1 Phase
PEAD-M71JAADR1.TH : Indoor – Ducted with Drain Pump
PUZ-ZM71VHA-AR1 : R32 Power Inverter Outdoor – Single Phase
PAR-40MAA : Wired Control with Back Light
7.1 kW Cooling
8.0 kW Heating
Power Inverter | ZM Series
Specifications
| Ceiling-Concealed (PEAD-ZM Series) | ||||
| Indoor Unit | PEAD-M71JAA(D) | |||
| Outdoor Unit | PUZ-ZM 71VHA-A | |||
| Refrigerant | R32 | |||
| Power Supply | V:230V, Single-phase, | |||
| Cooling |
Capacity
[Min-Rated-Max] |
(kW) | 3.3-7.1-8.1 | |
| Total Input [Rated] | (kW) | 1.85 | ||
| AEER/EER | 3.63 / 3.83 | |||
| AEER [Part-load %] *1 | – | |||
| Running Current [Rated] | A | 10.33 | ||
|
Sound
Pressure Level |
In (Lo-Mid-Hi) | dB(A) | 30-34-39 | |
| Out (PWL) | 47 (67) | |||
| Air Volume (In) Lo-Mid-Hi | L/S | 292-350-417 | ||
| Heating |
Capacity
[Min-Rated-Max] |
(kW) | 3.5-8.0-10.2 | |
| Total Input [Rated] | (kW) | 1.93 | ||
| ACOP/COP | 3.93 / 4.14 | |||
| Running Current [Rated] | (mm) | 8.80 | ||
|
Sound
Pressure Level |
In (Lo-Mid-Hi) | dB(A) | 30-34-39 | |
| Out (PWL) | dB(A) | 51 (70) | ||
| Air Volume (In) Lo-Mid-Hi | 292-350-417 | |||
| Max. Running Current | A | 20.28 | ||
| Indoor Unit | Input [Rated] | kW | (0.17) / 0.15 | |
| Dimensions [HxWxD] | mm | 250 x 1100 x 732 | ||
| Weight | kg | 30 | ||
| Static Pressure | Pa | 35 / 50 / 70 / 100 / 125 | ||
| Outdoor Unit | Dimensions [HxWxD] | mm | 943 x 950 x 300 (+25) | |
| Weight | kg | 70 | ||
| Breaker Size | A | 25 | ||
|
Ext.
Piping |
Diameter [Gas/Liquid] | mm | 15.88 / 9.52 | |
| Max. Length/Height | m | 50 /30 | ||
|
Guaranteed
Operating Range [Outdoor] |
Cooling *2 | °C | 5(-15) ~ 52 | |
| Heating | °C | -20 ~ 21 | ||
| Supply Air Duct | mm | 1060 x 178 | ||
| Precharge Refrigerant | kg | 2.8 (30m) | ||
| Additional Refrigerant |
per
M(g) |
40 | ||
