Mitsubishi Heavy Industries 10kW Inverter Ducted System FDUA100AVNAWVH
Mitsubishi Heavy Industries 10kW Inverter Ducted System FDUA100AVNAWVH

Mitsubishi Heavy Industries

Mitsubishi Heavy Industries 10kW Inverter Ducted System FDUA100AVNAWVH

$3,928.00 $4,516.00
Save $588.00
No reviews
No reviews
MODEL: FDUA100VH / FDCA100VNA-W
Quantity:
Found a better price?

Ducted & Split Systems Sizing Calculator

Use our split system or ducted sizing calculator below to determine the minimum size required for your room or house.

Note: For ducted systems only include the air conditioned spaces, exclude areas like garages, bathrooms or laundries.



Overview

Mitsubishi Heavy Industries FDUA100VH / FDCA100VNA-W 10kW High Static Ducted System | Single Phase

Indoor: FDUA100VH

Outdoor: FDCA100VNA-W

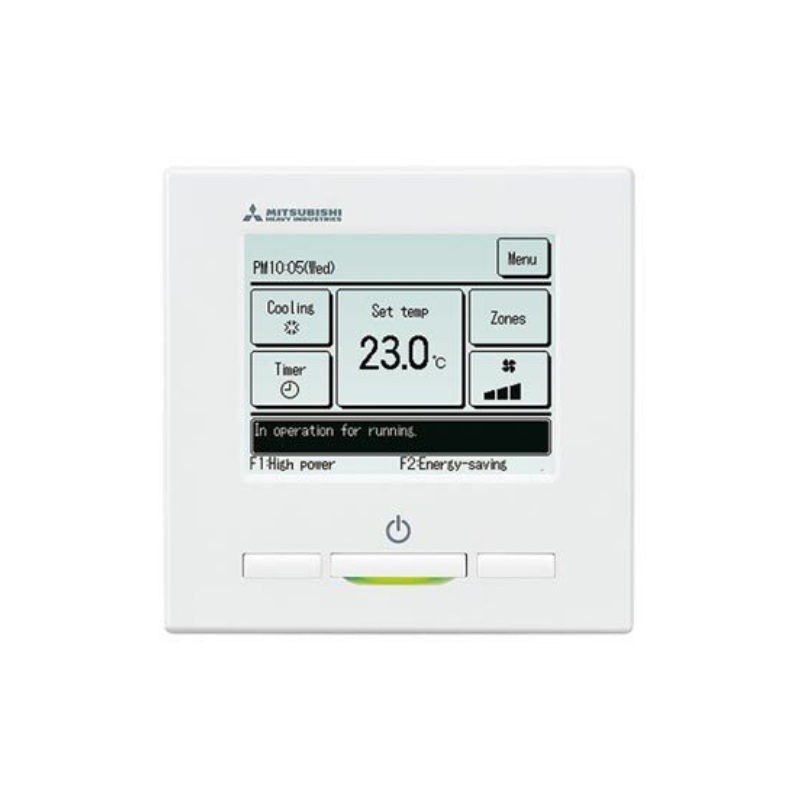

Backlit Controller: RC-EXZ3A

Specifications

CAPACITY 10.0KW
Set FDUA100AVNAWVH
Indoor FDUA100VH
Outdoor FDCA100VNA-W
Power Source (Outdoor Unit) 1 Phase 240V 50Hz




















*Operation Data





Nominal Capacity Range

 Cooling T1







kW

 10.0 (4.0-11.2)
Heating H1 11.2 (4.0-12.5)
Heating H2 10.00




Power Consumption

 Cooling T1 3.05
Heating H1 2.87
Max Power Consumption 6.40




Running Current

 Cooling T1



A

 14.7
Heating H1 14.0
Inrush Current, Maximum Current 5, 26
EER Cooling T1 3.28
COP Heating H1 3.90
Sound Power Level (JS C9612) Outdoor





dB(A)

 70
Sound Pressure Level (JS C9612) Indoor P-Hi:43 Hi:42 Me:40 Lo:37
Outdoor 55




External Dimensions (HXWXD)

 Indoor



mm

 398x1150x650
Outdoor 845x970x370




Net Weight

 Indoor



Kg

 52
Outdoor 77
Supply Air Connection



mm

 348×898
Return Air Connection 348×898
External Static Pressure (Max) Pa 200
Airflow Indoor (Cooling) l/s P-Hi:650 Hi:600



Me:550 Lo:483
Indoor (Heating)




Refrigerant (Type, Amount, Pre-charge Length)

 Quantity kg (R32) 3.3
Pre Charged To Pipe



Length

 m 30








Installation Data





Refrigerant Piping

 Liquid Line



mm

 Ø9.52
Gas Line Ø15.88
Connection Method Flare connection
Maximum Pipe Length (One Way)



m

 50
Max vertical height diff. between O.U. and I.U. 50 ( O.U. above I.U. ) /



15 ( O.U. below I.U. )
Controller RC-E5, RC-EXZ3A, RCH-E3 or RCN-KIT4-E2
Safety Pan (Optional) UA-SP2-E
Motion Sensor (Optional) LB-KIT2
Demand response (AS4755) Yes
Outdoor air temperature (upper, lower limits) Cooling



oC

 -15 to 50
Heating -20 to 20
