| Outdoor | SCM50ZS-W | |||
| Power source (Outdoor) | 1 Phase 240V 50Hz | |||
|
*Operation data |
Nominal Capacity (Range) |
Cooling T1 |
kW |
5.0 (1.7~7.1) |
| Heating H1 | 6.0 (1.0~7.5) | |||
|
Power consumption |
Cooling T1 | 1.02 | ||
| Heating H1 | 1.16 | |||
|
Running current |
Cooling T1 |
A |
4.3 | |
| Heating H1 | 4.9 | |||
| Inrush current, maximum current | 5, 15 | |||
| EER | Cooling T1 | 4.90 | ||
| COP | Heating H1 | 5.17 | ||
|
Sound power level (JIS C9612) |
Cooling T1 |
dB(A) |
62 | |
| Heating H1 | 64 | |||
|
Sound pressure level (JIS C9612) |
Cooling T1 | 49 | ||
| Heating H1 | 52 | |||
|
Silent mode |
Cooling T1 | 43 | ||
| Heating H1 | 44 | |||
| External dimensions (HxWxD) | mm | 640×850(+65)x290 | ||
| Net weight |
kg |
48.5 | ||
|
Refrigerant (R32) |
Quantity | 1.8 | ||
| Pre charged to pipe length | m | 40 | ||
|
Installation data |
Refrigerant piping |
Liquid line |
mm |
Ø6.35 x 3 |
| Gas line | Ø9.52 x 3 | |||
| Connection method | Flare connection | |||
| Maximum pipe length to one indoor unit |
m |
25 | ||
| Total pipe length to all indoor units | 40 | |||
| Max vertical height diff. between O.U. and I.U. | 15 ( O.U. above I.U.) / 15 ( O.U. below I.U. ) | |||
|
Indoor Unit Combination |
SRK-ZSA-W |
kW |
2.0, 2.5, 3.5, 5.0 | |
| SRK-ZSXA-W | 2.0, 2.5, 3.5, 5.0 | |||
| SRK-ZRA-W | ||||
| SRF-ZS(X)-W | 2.5, 3.5, 5.0 | |||
| SRR-ZS-W | 2.5, 3.5, 5.0 | |||
| FDTC-VH | 2.5, 3.5, 5.0 | |||
| FDUM-VH | 5.0 | |||
| Indoor Unit Connection | 2 to 3 Units | |||
| Indoor Connection Capacity | kW | 5.0 to 8.5 | ||
|
Outdoor air temperature (upper, lower limits) |
Cooling | °C | -15 to 46 | |
| Heating | -15 to 24 | |||
Mitsubishi Heavy Industries

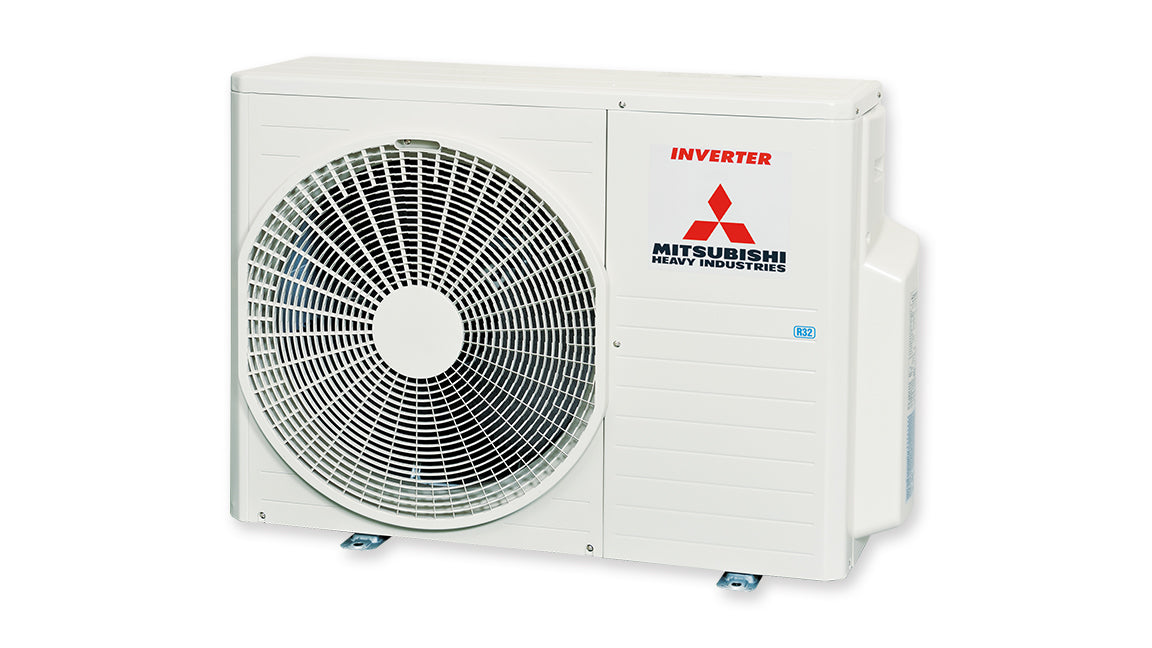

Mitsubishi Heavy Industries 5kW Multi Head Outdoor Unit Only SCM50ZS-W
Quantity:
Overview
Mitsubishi Heavy Industries SCM50ZS-W 5kW Multi Split System Outdoor Unit Only
For 2 – 3 Indoor Units
Maximum capacity of indoor units allowed: 8.5kW
