| CAPACITY | 10.0kW | ||||
| Indoor | SRK100ZR-W | ||||
| Outdoor | FDCA100VSA-W | ||||
| Power Source (Outdoor Unit) | 3 Phase 380-415V 50Hz | ||||
|
*Operation Data |
Nominal Capacity (Range) |
Cooling T1 |
kW |
10.0 (4.0~11.2) | |
| Heating H1 | 11.2 (4.0 ~12.5) | ||||
| Heating H2 | 7.7 | ||||
| Power Consumption | Cooling T1 | 3.19 | |||
| Heating H1 | 3.04 | ||||
| Maximum Power Consumption | 10.20 | ||||
| Running Current | Cooling T1 |
A |
4.8 | ||
| Heating H1 | 4.6 | ||||
| Inrush Current, Maximum Current | 5, 15 | ||||
| EER | Cooling T1 | 3.13 | |||
| COP | Heating H1 | 3.68 | |||
| Sound Power Level
(JIS C9612) |
Outdoor |
dB(A) |
69 | ||
| Sound Pressure Level (JIS C9612) | Indoor | 48-45-40-27 | |||
| Outdoor | 54 | ||||
|
Energy Label (GEMS 2019) |
Hot | Cooling |
Stars |
(3) | |
| Heating | (2.5) | ||||
| Average | Cooling | (2.5) | |||
| Heating | (1.5) | ||||
| Cold | Cooling | (3) | |||
| Heating | (1) | ||||
| External dimensions (HXWXD) | Indoor | mm | 339x1197x262 | ||
| Outdoor | 845x970x370 | ||||
| Net weight | Indoor | kg | 16.5 | ||
| Outdoor | 78 | ||||
| Airflow | Cooling (Indoor) | l/s | 408-355-293-173 | ||
| Heating (Indoor) | 458-386-318-227 | ||||
|
Installation Data |
Refrigerant (Type, Amount, Pre-charge Length) | Quantity | kg | (R32) 3.3 | |
| Pre-Charged to Pipe | m | 30 | |||
| Refrigerant Piping | Liquid line | mm | Ø9.52 | ||
| Gas line | Ø15.88 | ||||
| Connection Method | Flare connection | ||||
| Maximum Pipe Length (One Way) |
m |
50 | |||
| Max Vertical Height Diff. Between
O.U. and I.U. |
50 ( O.U above I.U ) / 15 ( O.U below I.U ) | ||||
| Standard accessories | Allergen Clear & Photocatalytic Washable Deodorizing Filter | ||||
| Optional parts | Interface kit (SC-BIKN2-E) / Wi-Fi Kit | ||||
| Demand Response (AS4755) | Yes | ||||
Mitsubishi Heavy Industries
Mitsubishi Heavy Industries Bronte 10kW Split System SRK100AVSAWZR | 3 phase
Quantity:
Overview

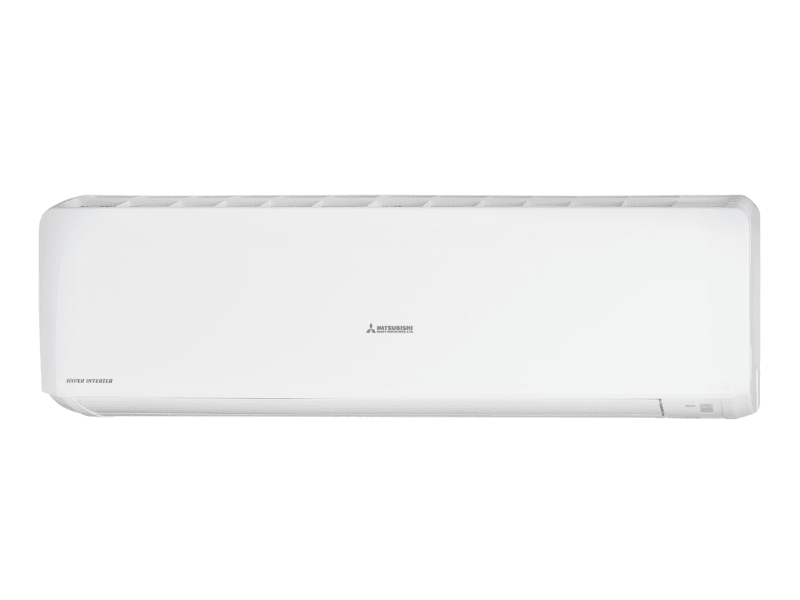

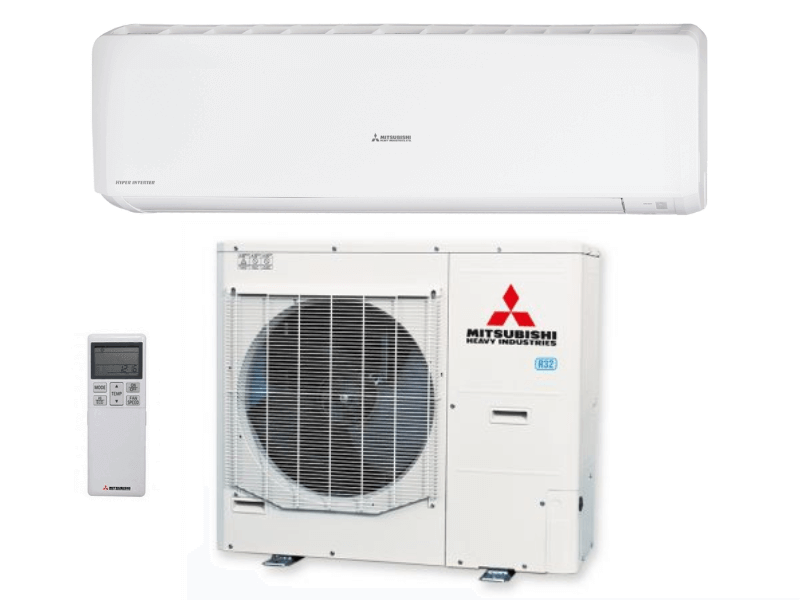

Mitsubishi Heavy Industries Bronte 10kW Split System | Three phase SRK100ZR-W / FDCA100VSA-W
10.0 kW Cooling | 11.2 kW Heating
Recommended by CHOICE®*, the BRONTE® series is the ideal solution for heating and cooling of larger spaces within your home.
Incorporating the same advanced fan blade technology used in the development of jet engines, the BRONTE® series features a market leading long reach airflow allowing it to efficiency deliver a powerful yet quiet and evenly distributed airflow.
Packed with a range of convenient features including the Allergen Clear System, 3D Auto Mode and a range of timer functions, the BRONTE® series is the ideal addition to any modern home.
- Advanced jet air technology delivering long reach airflow
- Allergen clear system to capture and eliminate allergens
- Wide range of convenient timer functions
- Energy efficient R32 refrigerant
- Optional Wi-Fi control
