| MODEL | (240V / 1 Phase / 50Hz) | CS-RZ80XKR
[CU-RZ80XKR] |
||||
| Cooling / Heating | (min-max) | kW | 8.00 [2.30-9.00] | |||
| 9.00 [2.20-11.60] | ||||||
| Capacity | (min-max) | Btu/h | 27,300 [7,840-30,700] | |||
| 30,700 [7,500-39,600] | ||||||
| Air Flow | Indoor | L/s |
367/377 |
|||
| Dehumid | L/h |
4.7 |
||||
| Running Current | A | 11.30/11.40 | ||||
| Electrical Data | Max Current | A | 15.8 | |||
| Power Input (min-max) | kW | 2.44 (0.46-3.10) | ||||
| 2.46 (0.44-3.60) | ||||||
| AEER / EER | W/W | 3.26/3.28 | ||||
| ACOP / COP | W/W | 3.64/3.66 | ||||
| Hot Climate | Cooling | 3.5 | ||||
| Heating | 3.5 | |||||
| Star Rating | Average Climate | Cooling | 3.5 | |||
| Heating | 2.5 | |||||
| Cold Climate | Cooling | 3.5 | ||||
| Heating | 2.0 | |||||
|
TCSPF & HSPF Residential/ Commercial |
Hot Climate | TCSPF HSPF | 5.30/5.95
5.02/5.01 |
|||
| Average Climate | TCSPF HSPF | 5.03/6.75
4.31/4.60 |
||||
| Cold Climate | TCSPF HSPF | 5.34/7.78
3.78/4.14 |
||||
| Noise Level | Indoor (H / L / Q-Lo) | 51/38/35 | ||||
| Sound Pressure | 50/38/35 | |||||
| Outdoor (H / Q-Lo) | ||||||
| Level*2 dB(A) | 55/50
55/50 |
|||||
| Indoor (H / L / Q-Lo) | 67/54/51 | |||||
| Sound Power | 66/54/51 | |||||
| Level dB(A) | ||||||
| Outdoor (H / Q-Lo) | 69/64 | |||||
| 69/64 | ||||||
| Net Weight | Indoor (Outdoor) | kg |
13(60) |
|||
| Dimensions | Indoor (H x W x D) | mm | 295 x 1,040 x 244 | |||
| Outdoor (H x W x D) | mm | 795 x 875 x320 | ||||
| Refrigerator Pipe Liquid Side mm/(inch) | ø 6.35 (1/4) | |||||
| Diameter Gas Side mm/(inch) | ø 15.88 (5/8) | |||||
| Pipe Extension Length Min ~ Max (m) |
3~30 |
|||||
| Maximum Elevation Length m |
20 |
|||||
| Pipe Length For Additional Gas m | 10.0 | |||||
| Additional Gas Amount g/m | 25 | |||||
| Operating Range (Outdoor) Cooling Degree °C
Heating |
-10 ~ +46
-15 ~ +24 |
|||||
Panasonic

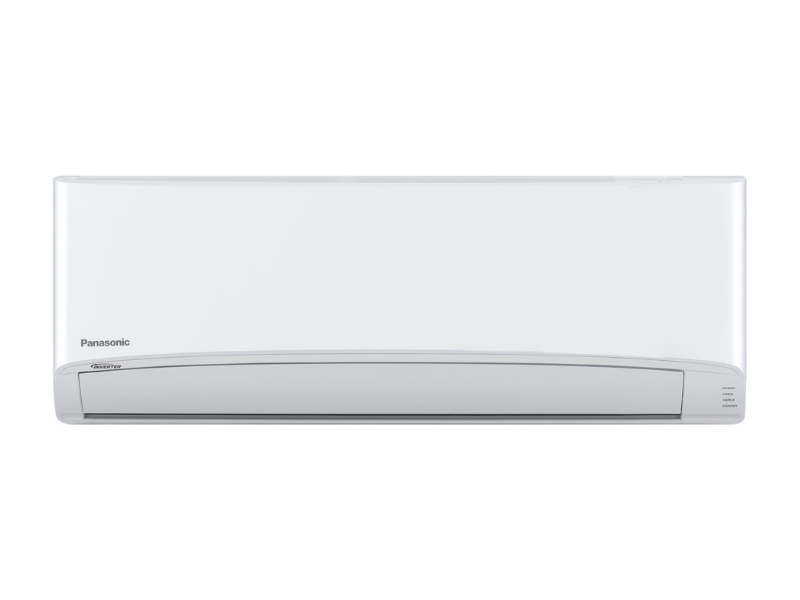

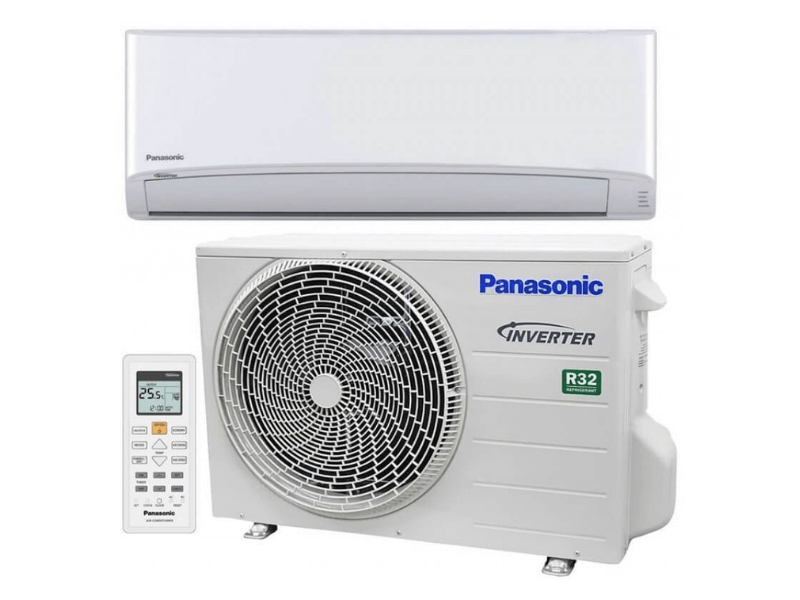

Panasonic 8kW Inverter Split System Air Conditioner CS/CU-RZ80XKR
Quantity:
Overview
8kW Panasonic Split System Air Conditioner CS/CU-RZ80XKR
Replaced CS/CU-RZ80WKRW
Panasonic Split Inverter Air Conditioner features built-in Anti-Bacterial Filter, Very Quiet Operation, Designed for the Australian Climate, Dehumidifier, and Easy to Set Up.
Features
Anti-Bacterial Filter: The Anti-Bacterial Filter combines three effects in one: anti-allergen, anti-virus and anti-bacterial protection to provide clean air.
Powerful Mode: Pressing the Powerful button cools or heats the room quickly. It provides fast comfort, with full power and a strong airflow. This is perfect for use immediately after coming home, or when unexpected guests arrive.
Quiet Mode: The Quiet Mode reduces both indoor and outdoor unit operating sound. This function is especially convenient for operation near a sleeping baby and at night-time.
Economy Mode: The Economy mode reduces energy consumption by up to 20%* compared to the Normal mode by automatically adjusting the set temperature by up to 2oC. It’s ideal when you want to maintain room temperature for gentle cooling and heating.
Blue Fin Condenser: Condensers can take a beating from exposure to salty air, rain and other corrosive factors. Panasonic has expanded the life of our condensers with an original anti-rust coating.
