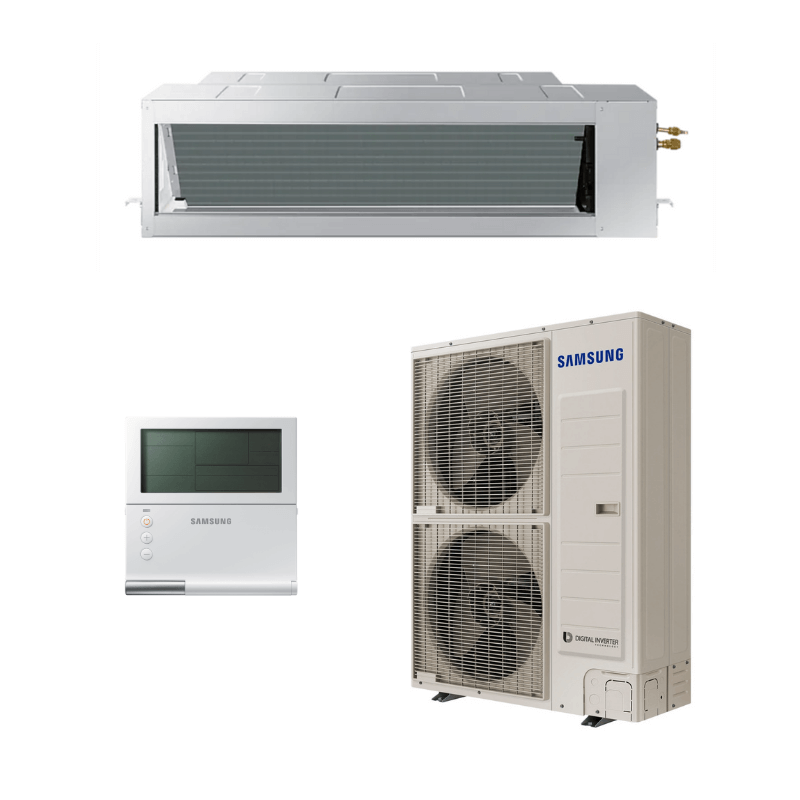

Samsung 16kW Duct S2+ Inverter Ducted Air Conditioner AC160TNHPKG/SA
Overview
Samsung 16kW Duct S2+ Inverter Ducted Air Conditioner | 1 Phase
The Samsung Premium S2+ 16kW is a very energy-efficient system that may be installed in a variety of locations. It utilises less energy for the same airflow.
The splittable type indoor unit’s fan and heat exchanger may be separated. Making it easier to install into tight roof spaces.
Features of Samsung Duct S2+ 16kW:
- Twin BLCD compressor and auto ESP.
- Demand Response Enabled Device (D.R.E.D)
- 3-way service access
- Digital Inverter Technology

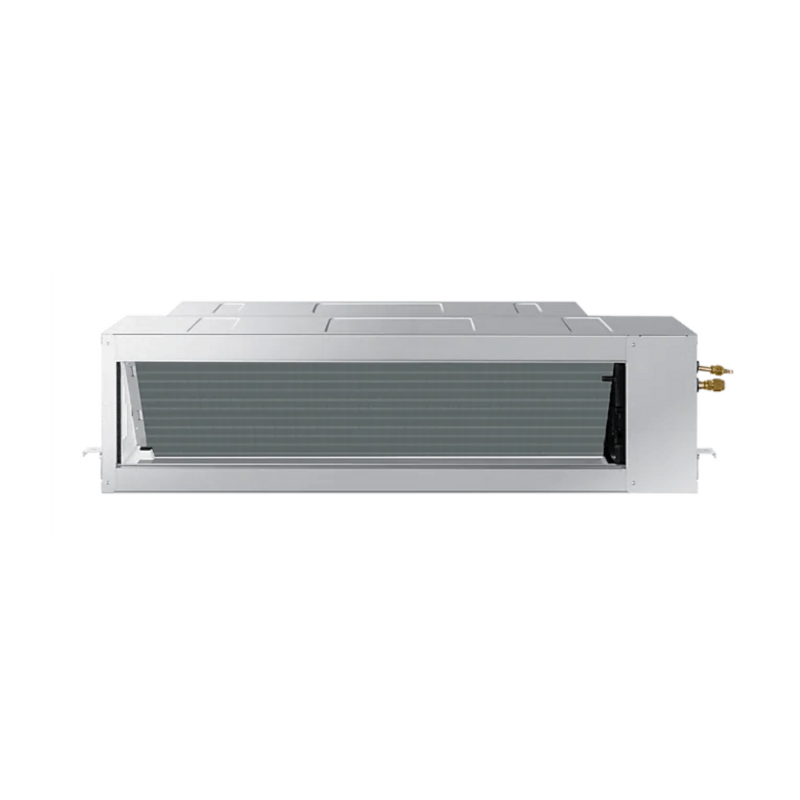

Indoor : AC160TNHPKG/SA 16.0kW Duct S2+, Splittable Indoor R32

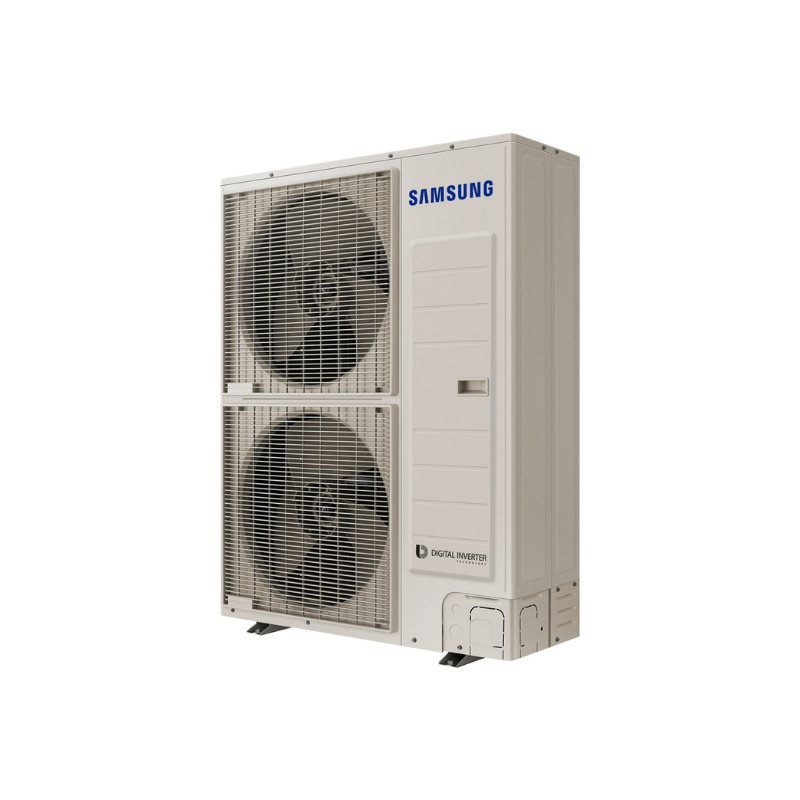

Outdoor : AC160TXAPKG/SA 16.0kW R32

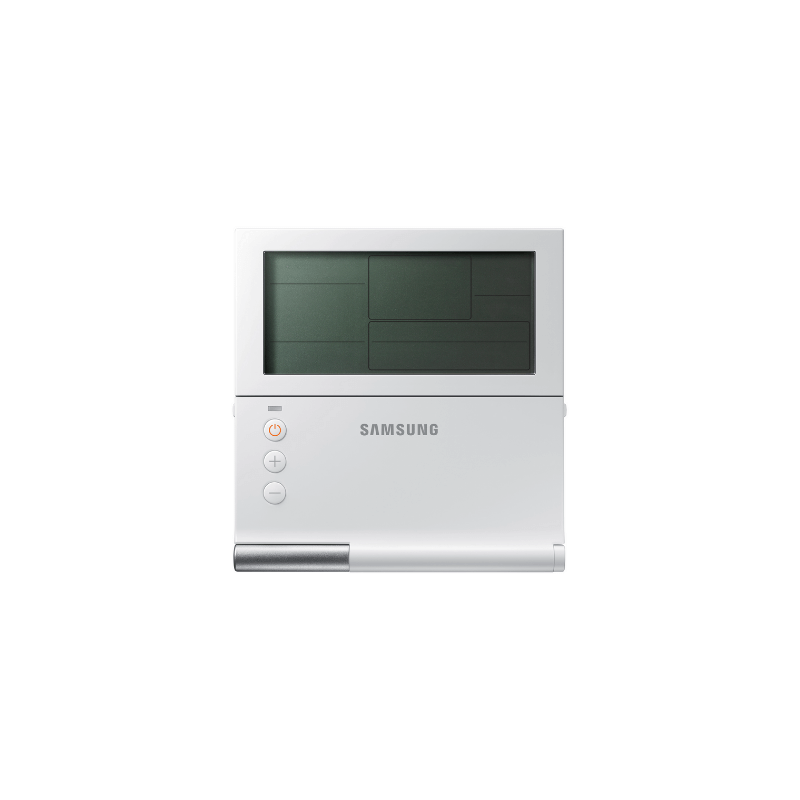

Controller : MWR-WE13N
Features
Enjoy maximum comfort
A Samsung inverter reverse cycle Ducted Air Conditioner is designed to enable each room in your home to be cooled or heated by one system. Ducted Systems are also relatively unobtrusive as the conditioned air is distributed through ducts hidden in your roof space to outlets in the ceiling of each room.
Enjoy maximum comfort with our Duct S2+ Systems.
Cool down faster
Powerful Airflow with more fans than ever
The strong and robust construction of our Duct S2+ Indoor Unit brings a maximum of 25% more air-volume than our standard model* meaning you stay comfortable in all parts of your home.
Energy Superstar
Low Running Cost
The Duct S2+ is a highly energy efficient system. For an equivalent airflow, it uses less energy. This leads to a low running cost – meaning you can use your Ducted system all day long without a hefty bill!
Easy to Install
Lightweight and Compact
Our Duct S2+ Indoor Units are designed to meet the needs of Australian homes. A lightweight and compact design with a quality finish makes the Duct S2+ easy to manoeuvres into any space.
Innovative Design
Splittable and Tapered
The Duct S2+ splittable type indoor unit can separate the fan and heat exchanger section, making it easier to position into tight roof space – perfect for renovations. The Duct S2+ indoor init has a tapered fan motor section that fits in between roof trusses. Combined with hanging brackets positioned to minimise obstruction, installation has never been this easy.
Fits into more places much more easily
Specifications
| Model Name | |
| Indoor Unit | AC160TNHPKG/SA |
| Refrigerant | |
| Type | R32 |
| Rated Capacity | |
| Cooling (Min / Std / Max) | 5.8 / 15.5 / 18.0 kW |
| Heating (Min / Std / Max) | 4.2 / 18.0 / 20.0 kW |
| Electrical | |
| MCA | 36.3 A |
| MFA | 40.0 A |
| Physical Specifications | |
| Unit Dimension (WxHxD) | 1350x360x899 mm |
| Net Weight (kg) | 66.5 kg |
| Installation | |
| Liquid Pipe (Φ, mm) | 9.52, 3/8" |
| Gas Pipe (Φ, mm) | 15.8, 5/8" |
| Max. Allowable Piping Length [m] | 85 m |
| Max. Allowable Piping Height [m] | 30 m |
| Drain connection size | OD 32 / ID 25 mm |
| Pre-charged Length (m) | 30 |
| Operating Range | |
| Cooling (℃) | -15~50 ℃ |
| Heating (℃) | -20~24 ℃ |
| Energy Efficiency | |
| EER (Std, Cooling) | 3.3 |
| COP (Std, Heating) | 3.73 |
| AEER (Cooling) | 3.3 |
| ACOP (Heating) | 3.72 |
| Smart | |
| WiFi Kit | Yes |
| App Connectivity | |
| SmartThings App Support | Yes |
| Indoor Unit | |
| Power Supply | 1-Phase, 220-240V, 50Hz |
| Air Flow Rate (H, M, L) | 1116/966/800 |
| ESP (L,M,H) | 49/60/100 |
| Sound Pressure @ 1.5m (H/L) | 49/45/41 |
| Supply Air Opening (WxH) | 1154x243 |
| Return Air Opening (WxH) | 2xSpigot, each spigot to suit Ø400mm flexible duct |
