Overview

Samsung AR30DXFZCWKNSA 8.0 kW Aero Wall Mounted Split System | R32

Indoor: AR30DXFZCWKNSA

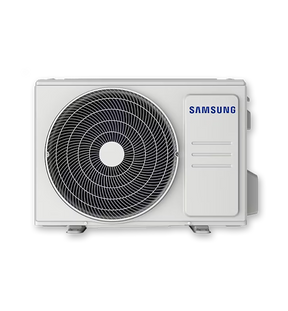

Outdoor: AR30DXFZCWKXSA


AI Energy Mode | In-built Wi-Fi | Energy Monitoring | 3-Step Auto Clean
8.0 kW Cooling | 9.0 kW Heating

Features

    • AI Energy Mode & AI Auto Cooling
    • In-built Wi-Fi with SmartThings


Shows the indoor unit analyzing its surroundings, including ‘Operation Time’, Indoor Temp.’, Setting Temp.’, and Outdoor Temp.’, along with the AI logo.

It shows setting up 'AI Energy Mode' using a remote control and mobile phone along with the 'AI logo. The phrase 'up to 20% energy saving with AI Energy Mode' appears above a close-up of wind coming out of a micro hole.

Specifications

Model Name
 Indoor Unit AR30DXFZCWKNSA
Outdoor Unit AR30DXFZCWKXSA
Capacity
 Cooling (Min/Std/Max) (kW) 2.5/8.0/9.3
Heating (Min/Std/Max) (kW) 2.4/9.0/13
Refrigerant
 Type R32
Factory Charging (Kg) 2
Energy Efficiency
 EER (W/W) 3.27
COP (W/W) 3.27
AEER (W/W) 3.27
ACOP (W/W) 3.34
Star rating
(Cooling – Hot/Average/Cold)		 3.0/3.0/3.0
Star rating
(Cooling – Hot/Average/Cold)		 3.0/2.0/1.5
Power
 Power Supply (Ø, V, Hz) 1, 220-240, 50
Power Input (Min/Std/ Max)
 Cooling (kW) 0.49/2.45/3.15
Heating (kW) 0.44/2.75/4
Current Input (Min/Std/ Max)
 Cooling (A) 2.5/11.1/14
Heating (A) 2.3/12.5/17.5
Indoor Unit
Air Flow Rate (l/s)
 Cooling (T/H/M/L) 340/295/252/195
Heating (T/H/M/L) 362/328/273/218
Sound Pressure Level (H/Silent) 47/30 dB(A)
Net Weight (Kg) 12.4
Shipping Weight (Kg) 14
Net Dimensions (WxHxD)
1,055mm x 299mm x 215mm
Shipping Dimensions (WxHxD)
1,115mm x 290mm x 375mm
Outdoor Unit
 Compressor Type BLDC ROTARY
Sound Pressure Level (Cooling) 57 dB(A)
Net Weight (Kg) 67.8
Shipping Weight (Kg) 72
Net Dimensions (WxHxD) 940mm x 998mm x 330mm
Shipping Dimensions (WxHxD)
995mm x 1,096mm x 426mm
Installation
 Liquid Pipe, Φ, mm (inch) 6.35 (1/4)
Gas Pipe, Φ, mm (inch) 15.88 (5/8)
Max Piping Length (Precharged), (m) 30 (15)
Max Piping Heigh (m) 15
Drain Pipe (Φ, mm) 16.3, 550
Additional Accessories
 Easy Filter Plus Removable/Washable
Wi-Fi •
Control System Infrared remote control Included
Operating Temperature Range
 Cooling (℃) -10 ~ 46
Heating (℃) -15 ~ 24
