Toshiba 14kW Digital Inverter High Static Ducted Air Conditioner System 3 Phase RAV-GM1601DTP-A / RAV-GM1601AT8P-A

Name: Toshiba 14kW Digital Inverter High Static Ducted Air Conditioner System 3 Phase RAV-GM1601DTP-A / RAV-GM1601AT8P-A
Brand: Toshiba
SKU: RAV-GM1601DTP-A / RAV-GM1601AT8P-A
Price: 5837.0 AUD
Availability: InStock

$5,837.00

No reviews

MODEL: RAV-GM1601DTP-A / RAV-GM1601AT8P-A

Quantity:

Found a better price?

Country

State

Postcode

Use our split system or ducted sizing calculator below to determine the minimum size required for your room or house.

Note: For ducted systems only include the air conditioned spaces, exclude areas like garages, bathrooms or laundries.

Overview

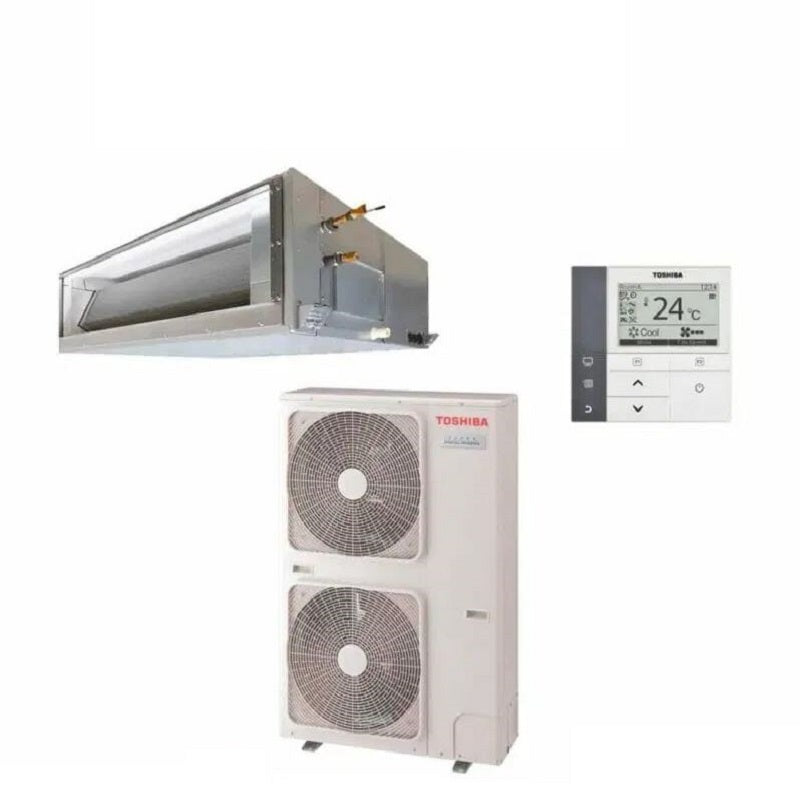

TOSHIBA RAV-GM1601DTP-A / RAV-GM1601AT8P-A 14.0kW Digital Inverter High Static Ducted Air Conditioner System 3 Phase

Indoor: RAV-GM1601DTP-A
Outdoor: RAV-GM1601AT8P-A
Wired Control with Weekly Timer : RBC-AMS41E

14 kW Cooling
16 kW Heating

DIGITAL INVERTER HIGH STATIC | R32

Specifications

Indoor Model		RAV-GM1601DTP-A
Outdoor Model		RAV-GM1601AT8P-A
Cooling Capacity (Range)	kW	14.0 [3.0 – 16.0]
EER		3.20
Heating Capacity (Range)	kW	16.0 [3.0 – 18.0]
COP		3.86
Maximum Operating Current	A	16.10
Air flow (H / M / L)	l/s	972 / 902 / 597
External Static	Pa	50 – 270
Dimensions – Indoor (H x W x D)	mm	298 x 1400 x 750
Dimensions – Outdoor (Hx W x D)	mm	1340 x 900 x 320
Weight – Indoor / Outdoor	kg	42 / 96
Sound Pressure Level Indoor / Outdoor	dB(A)	50 / 57
Operating Range Cooling	°C db	-15 to 46
Operating Range Heating	°C db	-15 to 24
Pipe Sizes (Liquid / Gas)	mm	9.52 / 15.88
Maximum Pipe Length / Lift	m	50 / 30
Maximum Pre-charged Length	m	30
Power Supply		3ph/380-415V/50Hz
